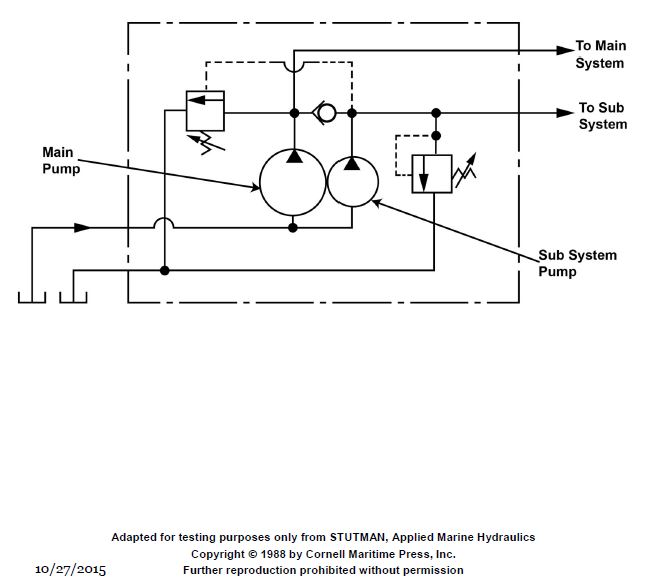

The illustrated hydraulic pump graphic symbol is used to depict a __________. GS-0098
Official USCG Answer & Rule Citation
Correct Answer: Option B — combined, pump unit
In hydraulic symbology, a combined pump unit symbol indicates two or more pump elements housed within a single casing or driven by a common shaft. This configuration is frequently utilized in marine hydraulic systems to provide multiple flow paths or pressure stages from a single prime mover.
