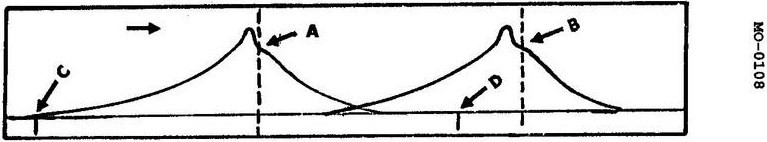

The indicator card shown in the illustration is produced with a/an __________. Illustration MO-0108

Correct Answer: Option A — rotating drum

Indicator cards require a paper-holding drum that oscillates or rotates proportionally to piston movement. This mechanical linkage records cylinder pressure versus piston displacement, providing essential operational data for evaluating indicated mean effective pressure and engine performance.
