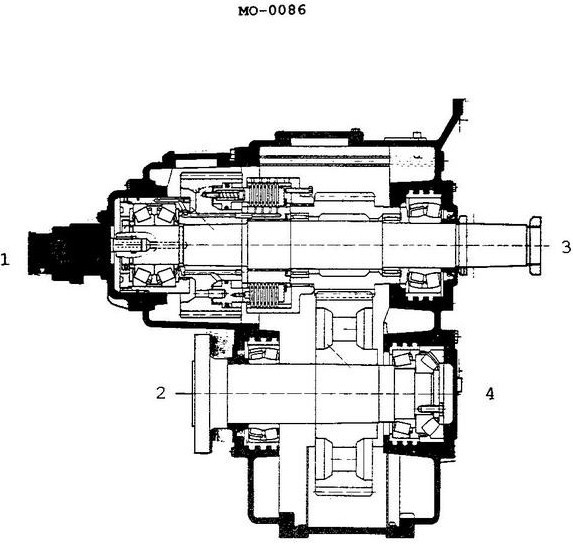

The pinion gear shown in the illustration, is located __________. Illustration MO-0086

Correct Answer: Option C — between "1" and "3"

Pinion gears in marine reduction gear arrangements transmit driving torque from prime movers to the main reduction gear wheel. Mechanical schematics position this driving pinion directly between designated idler or support elements 1 and 3.
