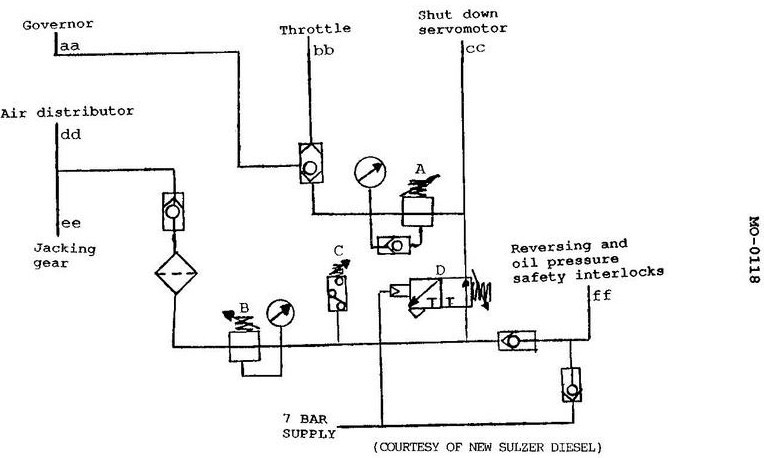

The pneumatic circuit shown in the illustration is part of a control system used with large low speed diesel engines. The arrangement may be used to control __________. Illustration MO-0118

Correct Answer: Option C — main engine speed

Pneumatic circuits integrated into large low-speed propulsion plants utilize pressure-regulated control signals to position actuators, directly governing main engine operating speed and fuel rack positioning.
