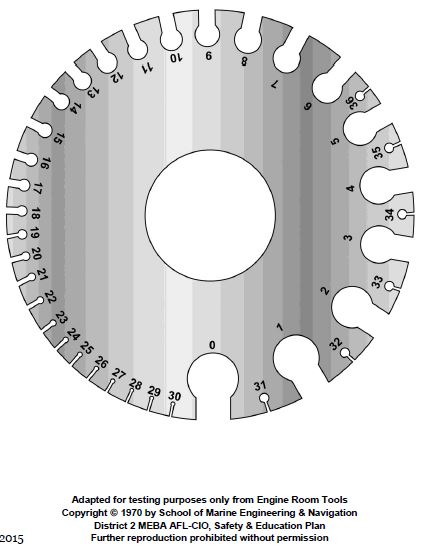

The purpose of the instrument illustrated is to __________. GS-0079

Correct Answer: Option C — measure wire diameter

A wire gage is a precision-machined circular or rectangular tool with calibrated slots corresponding to standard wire sizes. By inserting the wire into the slot, the engineer determines the American Wire Gauge (AWG) size, which is critical for ensuring electrical circuits meet the current-carrying capacity requirements mandated by 46 CFR.
