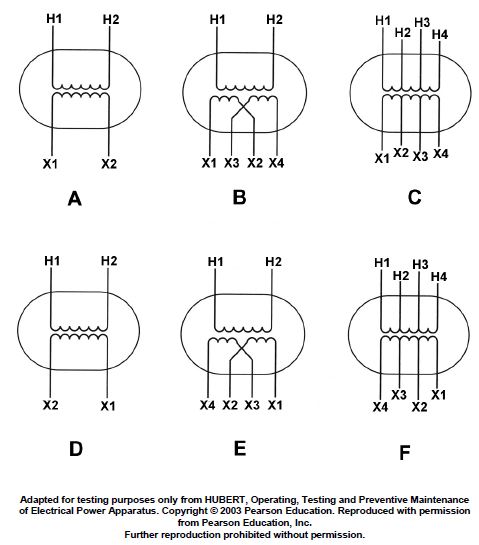

The transformer diagram shown in figure "B" of the illustration represents what type of transformer? EL-0082

Correct Answer: Option B — step down transformer with dual voltage secondary

According to IEEE 45 and 46 CFR Subchapter J standards, transformers featuring center-tapped secondary windings deliver dual voltage capabilities to accommodate varying shipboard loads. This specific configuration steps down main distribution voltage while offering versatile low-voltage output selections.
