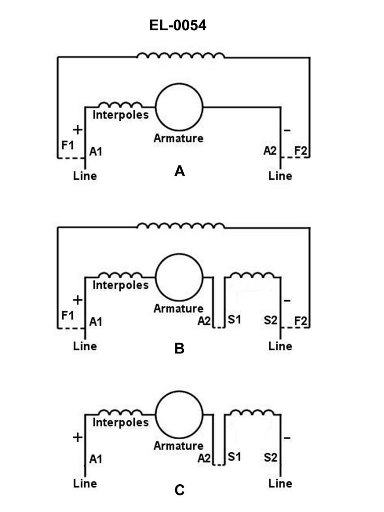

The wiring diagram found in figure "A" of the illustration represents what type of DC motor? EL-0054

Correct Answer: Option D — shunt wound

Figure A illustrates a DC motor schematic where the field winding is connected directly in parallel across the armature circuit terminals. This parallel configuration is the defining schematic representation of a standard shunt-wound direct current motor.
