Marine Electrical Systems USCG Question #1206 (Set 41)

Using the illustrated catalog number selection chart, determine the correct catalog number for a motor starter that meets the following selection criteria: a 3-pole, vertically mounted, NEMA reversing starter with an open enclosure rated at 45 continuous amperes, fitted with an electronic overload relay with a ground fault feature set and an operating coil rated at 24 VAC/60Hz. EL-0180

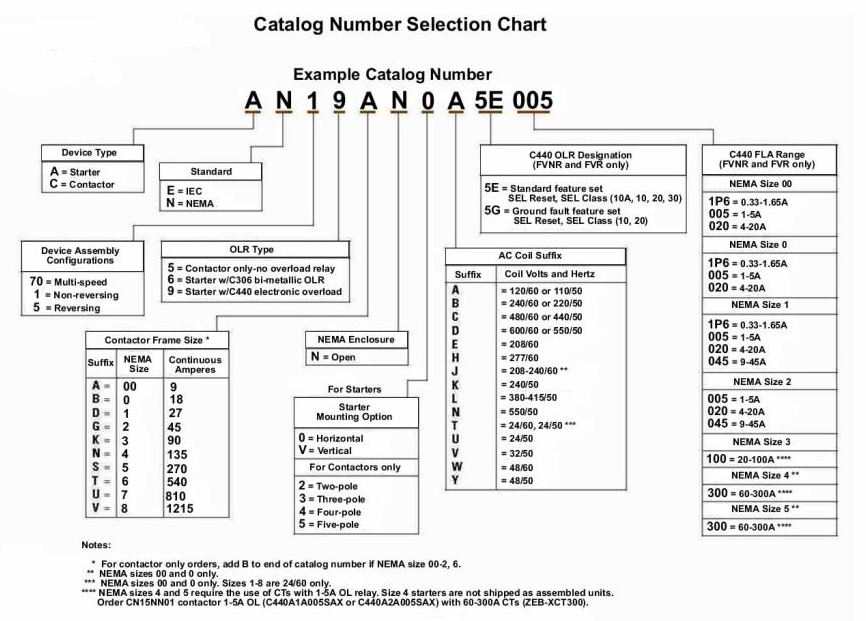

USCG Exam Illustration EL-0180
USCG Examination Diagram: Illustration EL-0180
Official USCG Answer & Rule Citation

Correct Answer: Option A — AN59GNVT5G045

Under USCG National Maritime Center examination standards, the accepted correct answer is: AN59GNVT5G045.
