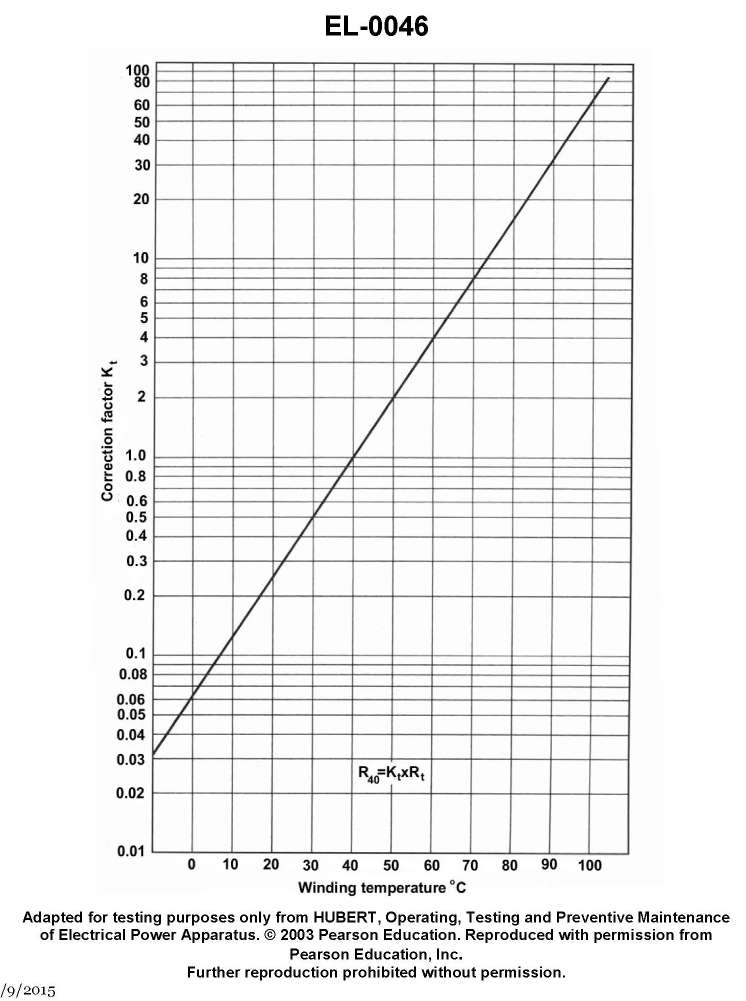

Using the temperature correction factor for the winding insulation temperature graph shown in the illustration, what would be the correction factor and the corrected temperature to 40 degrees C for a motor with a insulation resistance of 4 megohms measured at 50 degrees C? EL-0046

Correct Answer: Option A — The temperature correction factor is 2 and the corrected resistance is 8 megohms at 40 degrees C.

Under USCG National Maritime Center examination standards, the accepted correct answer is: The temperature correction factor is 2 and the corrected resistance is 8 megohms at 40 degrees C..
