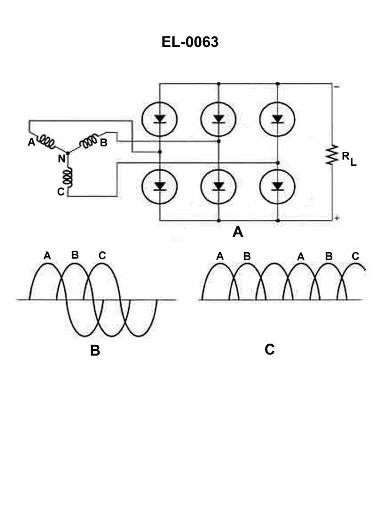

What does the drawing in the illustrated circuit represent? Illustration EL-0063

Correct Answer: Option B — a three phase full wave rectifier

A three-phase full-wave bridge rectifier utilizes six diodes arranged to convert alternating current from a three-phase marine generator into direct current, providing lower ripple voltage and higher efficiency than half-wave configurations, as outlined in IEEE 45 power electronics guidelines.
