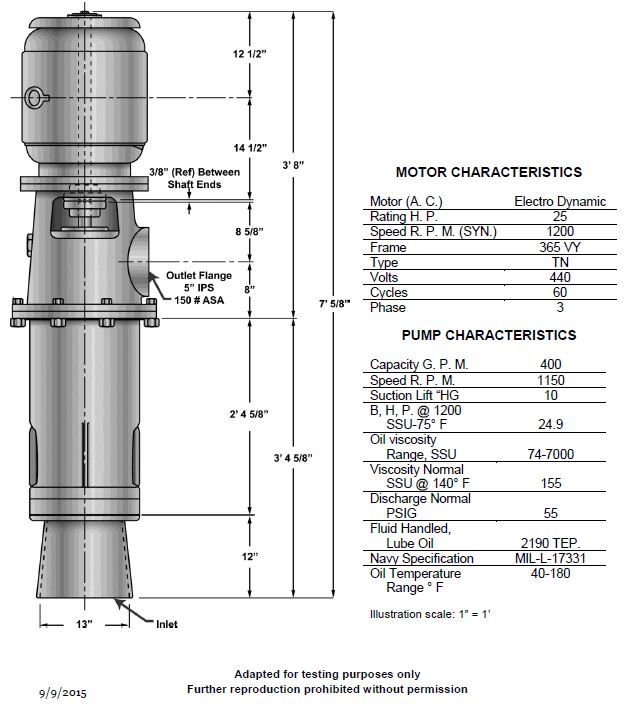

What is the distance between the center of the discharge outlet and the top of the motor illustrated? GS-0011

Correct Answer: Option D — 36 inches

Accurate spatial measurement is vital for marine machinery installation. By analyzing the vertical layout in illustration GS-0011, the distance from the center of the discharge outlet to the top of the motor is 36 inches. This dimension ensures adequate clearance for piping connections and maintenance access in the engine room.
