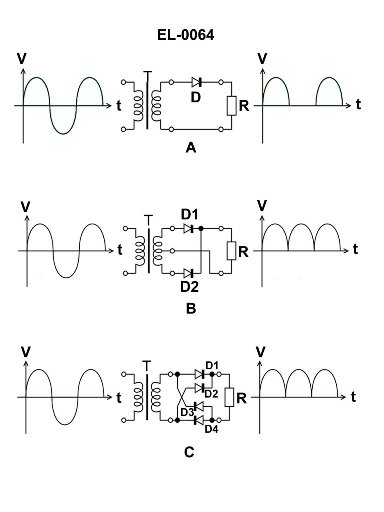

What is the name for the device shown in figure "A" of the illustration? Illustration EL-0064
Official USCG Answer & Rule Citation
Correct Answer: Option C — half wave rectifier
Figure A illustrates a single diode configured for half-wave rectification, passing only one half-cycle of the alternating current input to yield a pulsating direct current output.
