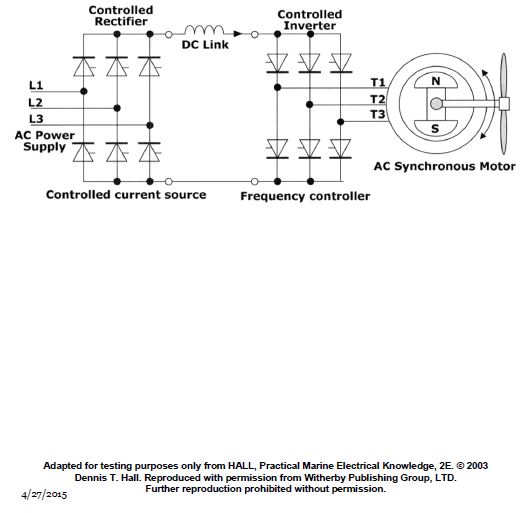

What type of electric propulsion system converter is shown in the illustration? EL-0155
Official USCG Answer & Rule Citation
Correct Answer: Option C — synchroconverter
The synchroconverter system utilizes a load-commutated inverter configuration. By using the motor's back EMF for commutation, it is specifically designed for large synchronous propulsion motors. This topology is distinct from PWM or cycloconverter systems and is commonly identified in marine electrical schematics by its specific thyristor bridge arrangement.
