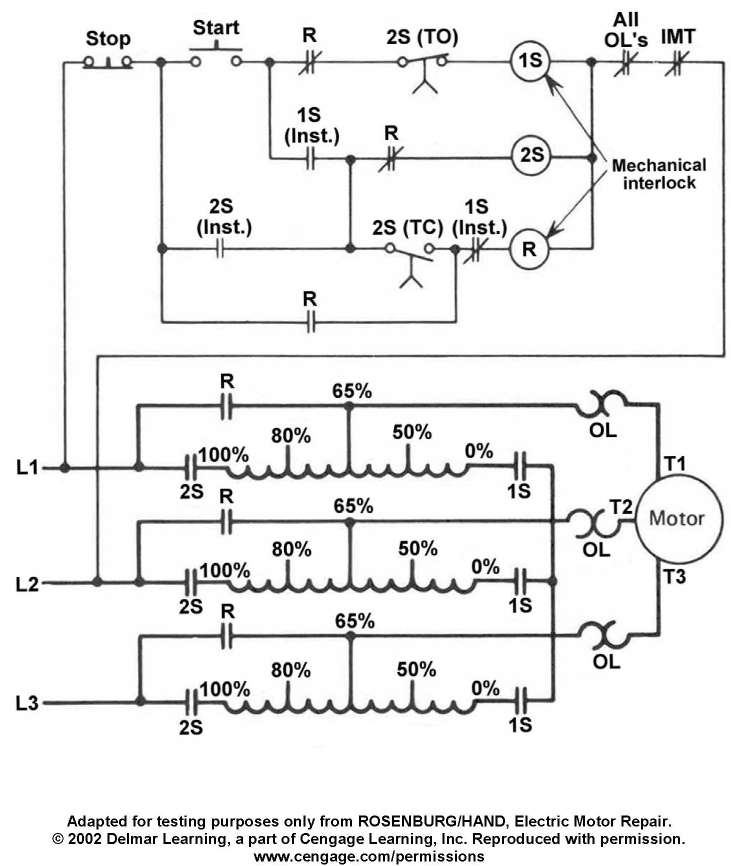

What type of electrical diagram for the autotransformer type motor controller is shown in the illustration? Illustration EL-0012
Official USCG Answer & Rule Citation
Correct Answer: Option D — The diagram is a ladder or line diagram (schematic).
Under USCG National Maritime Center examination standards, the accepted correct answer is: The diagram is a ladder or line diagram (schematic)..
