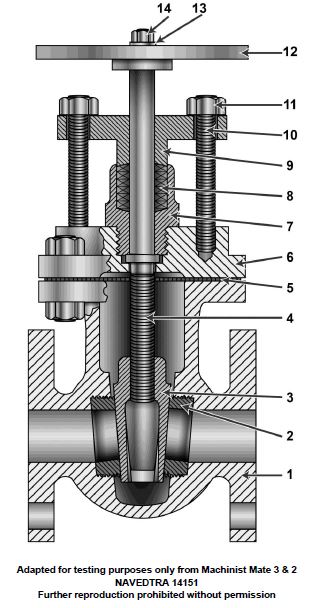

What type of valve is shown in the illustration? GS-0047

Correct Answer: Option D — Gate valve

The illustration shows a gate valve, identified by the wedge-shaped disc that moves perpendicular to the flow path. Gate valves provide a straight-through flow path with minimal pressure drop, making them the preferred choice for isolation in marine piping systems where full flow is required during operation.
