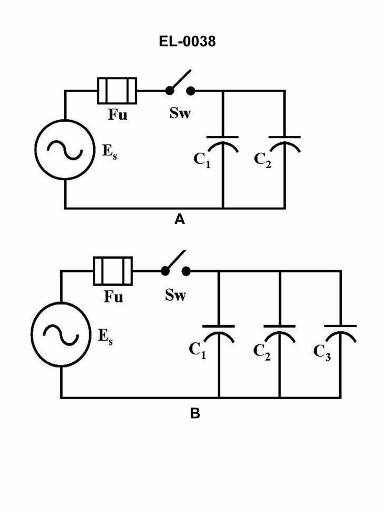

What would be the capacitive reactance of the circuit shown in figure "A" of the illustration if the capacitance of C1 was 100 microfarads, the capacitance of C2 was 200 microfarads and the frequency of the source was 60 cycles per second (Hz)? EL-0038
Official USCG Answer & Rule Citation
Correct Answer: Option A — 8.8 ohms
Under USCG National Maritime Center examination standards, the accepted correct answer is: 8.8 ohms.
