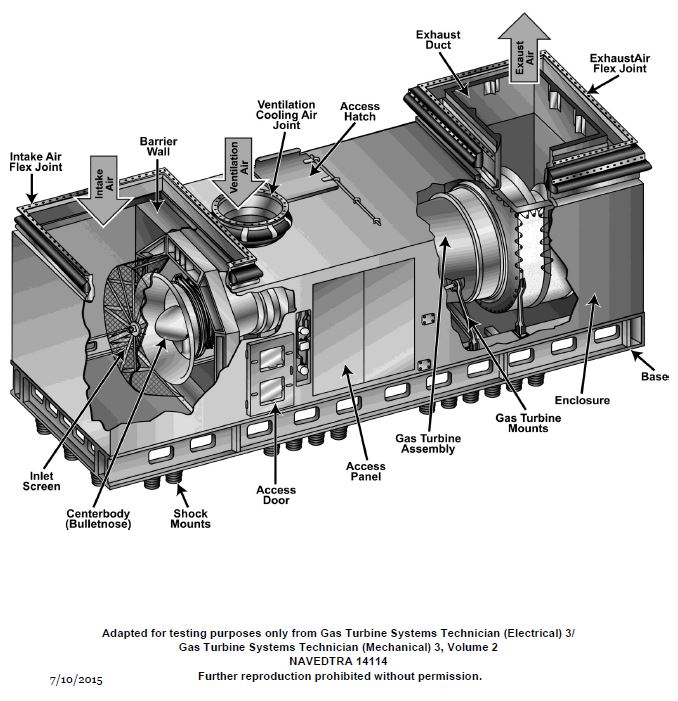

When removing the gas turbine engine as shown in the illustration, how is the engine removal accomplished? Illustration GT-0022

Correct Answer: Option A — By removing the inlet screen, barrier wall and module front panel, then installing the rails and moving the engine into the engine room and up through the soft patch to the main deck.

Engine removal for the LM2500 module requires a structured approach. Technicians must remove the inlet screen, barrier wall, and front panel to clear a path. Rails are then installed to support the engine as it is moved into the engine room and lifted through the designated soft patch.
