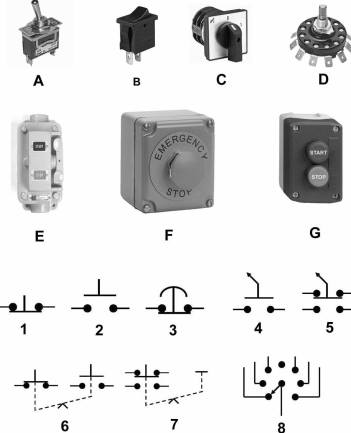

Which of the following statements concerning figure "6" of the illustration is true? EL-0026

Correct Answer: Option C — The symbol represents a switch using maintained contact with "either/or" logic.

Figure "6" illustrates a maintained-contact switch utilizing either/or logic, common in selector and transfer switch applications. IEEE 45 schematic conventions dictate how multi-position control devices are documented for shipboard electrical distribution systems governed by 46 CFR Subchapter J.
