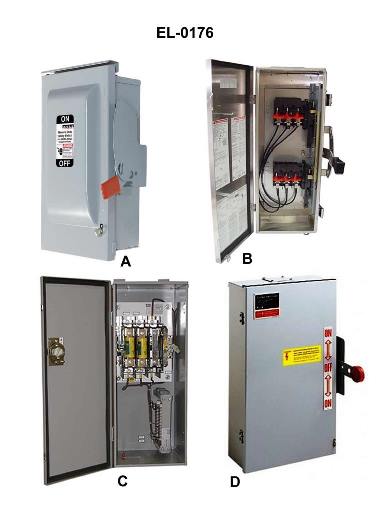

Which of the illustrated safety disconnect switches represents a double throw switch? Illustration EL-0176

Correct Answer: Option B — B and D

Double throw switches connect a single conductor to one of two different terminals, enabling alternative power sources per IEEE 45 and 46 CFR Subchapter J standards. Diagrams B and D distinctly illustrate this dual-position transfer capability used in shipboard distribution.
