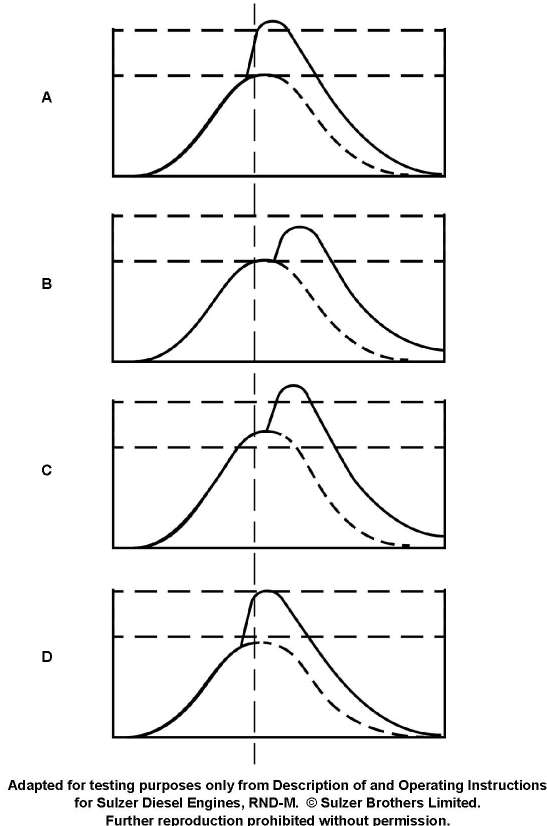

Which of the indicator diagrams illustrated depicts the condition that should be corrected by retarding only the timing? Illustration MO-0029

Correct Answer: Option A — A

Excessively advanced fuel injection timing causes peak firing pressures to rise prematurely before top dead center, creating a steep indicator card loop. Retarding the injection timing shifts the peak pressure point down and to the right, correcting this operational anomaly.
